OLED Development Kit

Edit Product

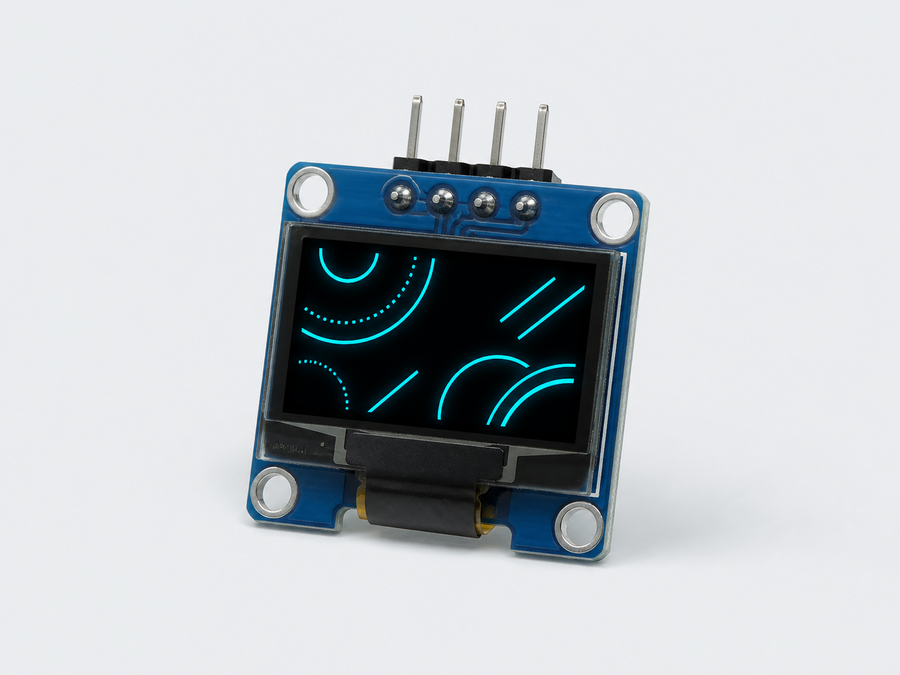

OLED Display Module

TEST-OLED-KIT

Published

High-contrast compact OLED module demo page, suitable for displaying text, icons, and device status.(Standalone product 4)

Introduction

• Self-emissive display, no additional backlight needed.
• Compact size, low power consumption, easy to embed in tight devices.
• Supports simple I2C connection.
• Standalone product ID: 4.

Specifications

Specifications to be added.

Hardware

The module provides VCC, GND, SCL, and SDA interfaces. Confirm I2C address and host pull-up voltage before use.

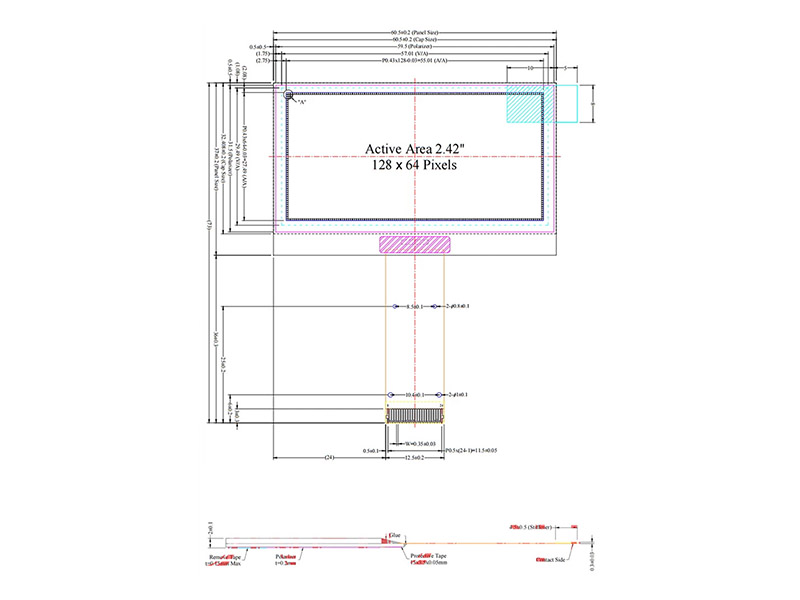

Size

1. Connect power and the I2C bus.
2. Scan and confirm the device address.
3. Load the driver matching the resolution.
4. Draw text and graphics to verify orientation.

FAQ

What if the address cannot be scanned?

Check power, ground, SCL/SDA reversal, and pull-up resistors.

What if the display content is misaligned?

Confirm controller model, resolution, and page addressing mode.

Downloads

暂无Published资源，管理员可在产品表单中添加下载文件。
